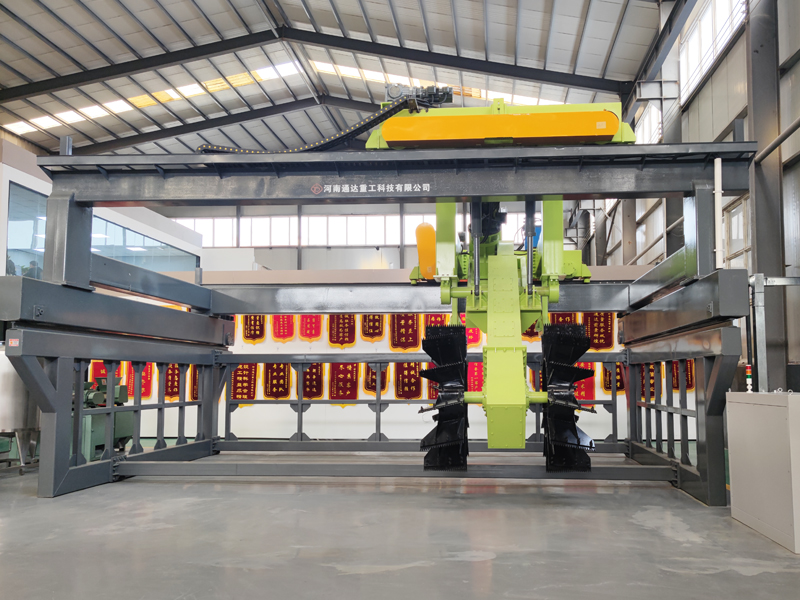

Double-Wheel Hydraulic Lifting Compost Turner

Production Capacity: 10-20ton/h

Matching Power: 45KW

Applicable Materials: Large span and high depth of livestock manure, sludge and garbage, filter mud from sugar mill, worse slag cake etc.

Product Introduction:Product Introduction:1. The double-wheel hydraulic lifting compost turner consists of main components such as power transmission device, moving device, hydraulic lift device and turning device.2. The motor directly transmits the power to the cycloidal pin

Product Description

Product Introduction:

1. The double-wheel hydraulic lifting compost turner consists of main components such as power transmission device, moving device, hydraulic lift device and turning device.

2. The motor directly transmits the power to the cycloidal pinwheel reducer via the sprocket to the turning wheel.

3. The height of the fermentation materials can reach to 2-3m, and the materials in the fermentation tank can be easily turned and stirred to a position height of 2-7m.

4. The turning speed can be adjusted to achieve the effect of quick turning and uniform stirring, thereby the materials and the air can be fully contacted to achieve the better fermentation effect of the materials.

Related Configurations:

1. Power transmission device: This device is composed of motor, reducer, sprocket, bearing seat, main shaft, etc. It is an important device for providing power for the turning wheel.

2. Walking device:The device is composed of traveling motor, transmission gear, transmission shaft, walking sprocket etc.

3. Hydraulic lifting device: The device is composed of hydraulic cylinder, hydraulic motor and hydraulic arm.

4. Turning device: The device is composed of a small trolley, sprocket, wheel support arm, turning wheel etc.

Characteristics:

1. Large turning depth: The turning depth can reach 2-2.2 meters.

2. Large turning span: The turning span can reach 22-33 meters.

3. Low energy consumption: Adopt unique energy efficient transmission mechanism, and the energy consumption of the same operating volume is 70% lower than that of the traditional turning equipment.

4. Flexible turning: The turning speed is in symmetry, and under the displacement of the governor shift trolley, there is no dead angle.

5. High automation: It is equipped with fully automated electrical control system, where the turner is working without the need for an operator.

6. It can be customized according to customer requirements.

Product Parameter

Model

Main Motor Power(kw)

Moving Motor Power(kw)

Trolley Motor Power(kw)

Turning Width(mm)

Turning Depth(mm)

TDSLPFD-20000

55/75

3*4

3*2

20

1.5-2

TDSLPFD-20000

75/90

3*4

2.2*4

25

2-3
