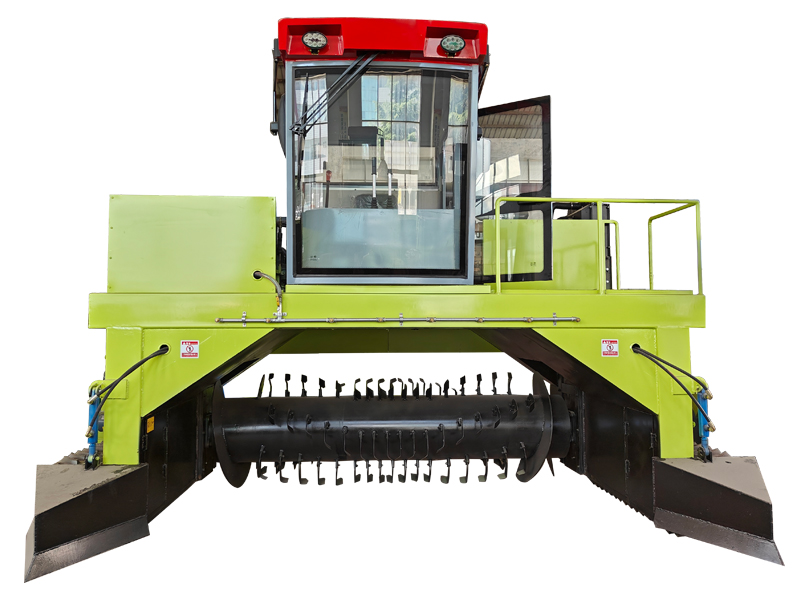

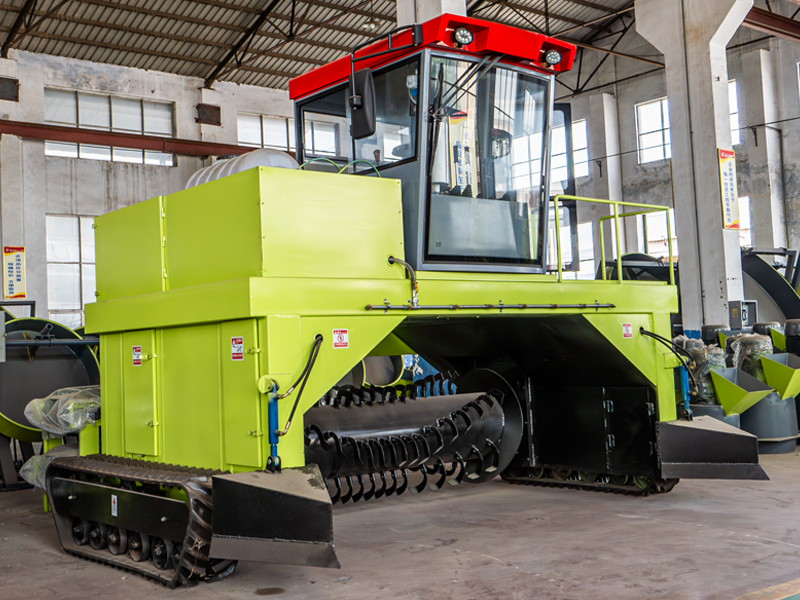

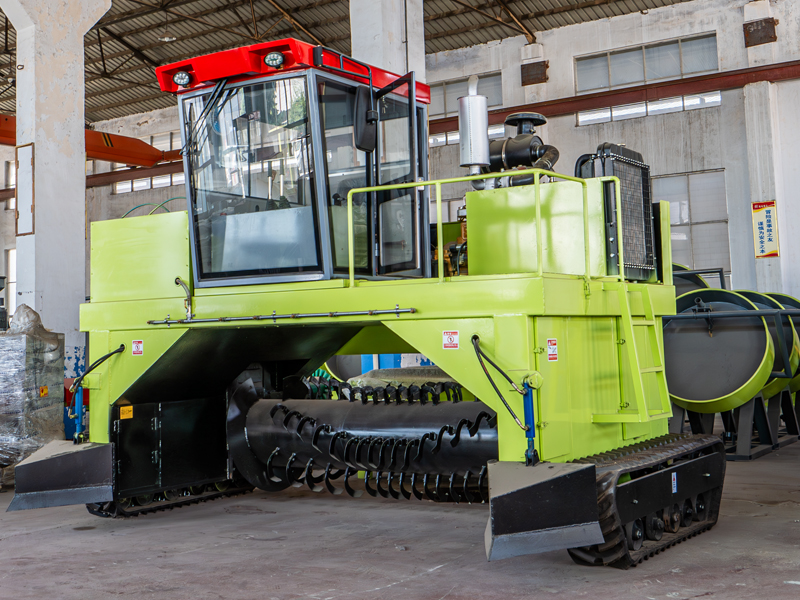

Crawler Type Compost Turner

Production Capacity: 10-20t/h

Matching Power: 75kw

Applicable Materials: Cow manure, pig drop, chicken manure,municipal sludge, fruit and vegetable waste,sugar dregs cake, bagasse, corn straw.

Product Introduction:Product introduction1. The crawler type compost turner belongs to the ground pile fermentation mode, which is the most economical mode of saving soil and human resources at present.2. The material needs to be piled up into a stack, then the material is st

Product Description

Product introduction

1. The crawler type compost turner belongs to the ground pile fermentation mode, which is the most economical mode of saving soil and human resources at present.

2. The material needs to be piled up into a stack, then the material is stirred and crushed at regular intervals by the turning machine, and the decomposition of organic matter will be under aerobic conditions.

3. It also has a broken function, which greatly saves time and labor force, making the production efficiency and product quality of the organic fertilizer plant improved significantly, and the cost reduced greatly.

4. When the turning machine works, the sludge, sticky chicken manure and other materials can be well stirred with the fungus and straw powder, creating a better aerobic environment for the fermentation of materials.

5. It not only ferments faster than deep groove type, but also effectively prevents the production of harmful and odorous gases such as hydrogen sulfide, amine gas and indole during fermentation, which is in line with environmental production requirements.

Performance characteristics

Tongda crawler type compost turner has the following characteristics:

1. The operation is easier and the hydraulic directional type was eliminated; save the site, artificial, diesel, shorten the working time, advanced the fermentation cycle.

2. This product has been turned over and separated by soft start. (The  other domestic products of the same kind use iron for iron hard clutch, which has a serious damage to the chain, bearing and shaft).

3. Installed front hydraulic push plat, so it is no need to manually take the whole pile.

4. Cylinder hydraulic lifting.

Working principle

1. The bio-organic manure turning machine is a bio-organic fertilizer made of livestock and poultry manure, agricultural waste, sugar mill filter sludge, sludge, domestic garbage, etc. through the principle of oxygen-consuming fermentation to make it green and environmentally friendly and improve the soil quality.

2. It can reach one day of heating, 3-5 days of deodorization, sterilization (can completely kill insects and eggs in feces, etc.), and fertilizer is made in 7 days.

3. It is faster and more efficient than other Mechanical methods of fermentation.

4. According to customer requirements can also add some auxiliary facilities, such as automatic sprinklers, etc.

Product Parameter

Model

TDLDF-2400

TDLDF-2600

TDLDF-3000

TDLDF-3000
(Full Hydraulic)

Turning Width(mm)

2400

2600

3000

3000

Turning Height(mm)

600-1000

1100-1300

1300-1500

1600-1800

Row Spacing(mm)

800-1000

800-1000

800-1000

100-1000

Max.Diameter of Material Particles(mm)

250

250

250

250

Power(horsepower)

75

116

136

143

Working Knife Diameter(mm)

400

500

500

800

Working Speed(m/min)

6-10

6-10

6-10

6-10

Capacity(/h)

500-700

1000-1200

1300-1500

1500-1800
