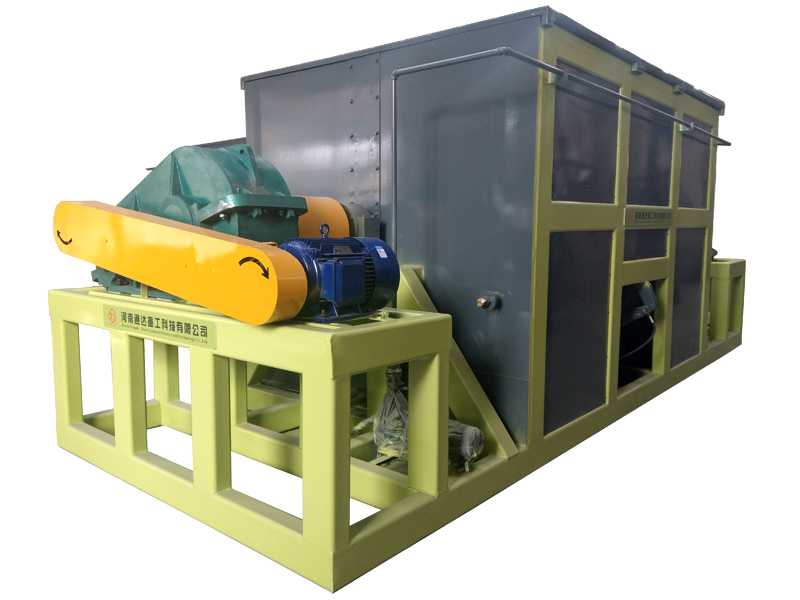

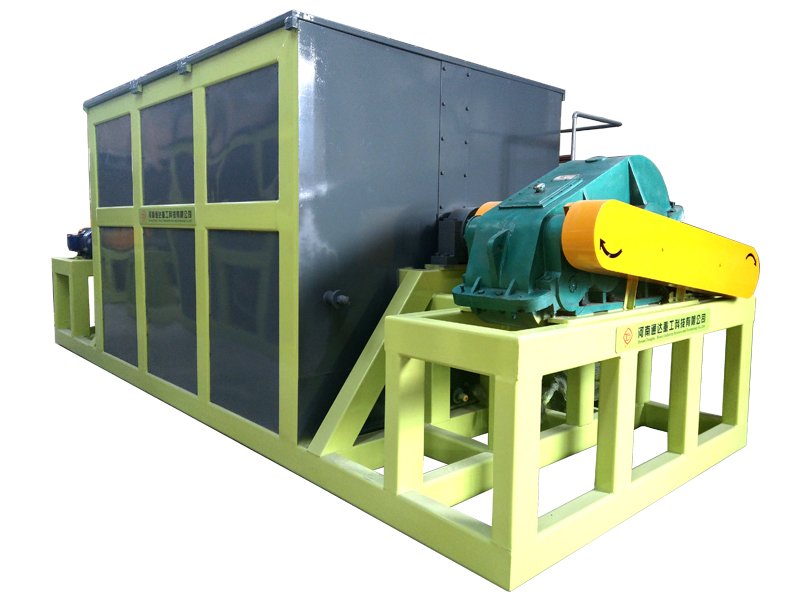

Horizontal Fermentation Tank

Production Capacity: 15 m³/h-20 m³/h

Matching Power: 30kw

Applicable Materials: Organic waste such as pig manure, chicken manure, cow manure, sheep manure, mushroom residue, Chinese medicine residue.

Product Introduction:Product introductionHorizontal fermentation tank includes:1. feeding system2. tank fermentation system3. power mixing system4. discharging system5. heating and insulation system6. maintenance part7. fully automated electrical control system Performance ch

Product Description

Product introduction

Horizontal fermentation tank includes:

1. feeding system

2. tank fermentation system

3. power mixing system

4. discharging system

5. heating and insulation system

6. maintenance part

7. fully automated electrical control system


Performance characteristics

1. Covering less, no pollution, completely killing the pest eggs.

2. No air pollution (sealed fermentation).

3. Completely kill the eggs of diseases and insects (adjustable constant temperature of 60-100 degrees) with high corrosion resistance, it is a wise choice for the majority of breeding enterprises, circular agriculture and ecological agriculture to realize the utilization of waste resources.

4. The internal heat conduction oil of this equipment adopts imported high temperature heat conduction oil as the constant temperature calorific value transfer medium, which has obvious advantages such as high boiling point, stable heat conduction performance, high heat exchange efficiency, good heat transfer effect and high heat energy utilization rate.


Working principle

1. Firstly, the materials to be fermented are put into the fermentation tank from the inlet through the belt conveyor. At the same time as the materials are put into the pot, start the main motor, and the main shaft is driven by the motor reducer to start stirring. Then, the spiral blade carried on the stirring shaft is turned over with the materials, so that the materials can be fully contacted with the air to start the aerobic fermentation stage.

2. Secondly, the heating system of the electric heating rod at the bottom of the pot which is controlled by the electric cabinet is used to heat the heating transfer oil in the mezzanine of the pot. And the temperature of the pot is regulated by the temperature of the pot is regulated by the temperature sensor which heating to achieve the best fermentation condition. After the fermentation of the material is completed, the material is discharged through the outlet of the pot, and carry out the next processing.

Product Parameter


Heating Power(kw)

Stirring Power(kw)

Reducer Model

Stirring Speed(r/min)
