Animal manure composting method - the principle and advantages of the Groove Type Compost Turner

Traditional compost: this model is mainly for smaller pig farms, because under this model, compost cycle time is relatively long and occupies a large land area, which is not suitable for large-scale pig composting.

Mechanized composting: pig farms in this mode generally build their own fermentation composting workshop! In this mode, under the comprehensive action of a layer of bedding material and fermentation bacteria, the pig manure can be fermented and tossed by the tilting machine to increase the circulation of oxygen, thus realizing the purpose of deodorization and compost in 7 days.

The supporting power is 22KW, the working speed is 5 (m/min), the width of the fermentation tank is 5000mm, the depth is 1200mm, and the length of the fermentation tank is not limited.

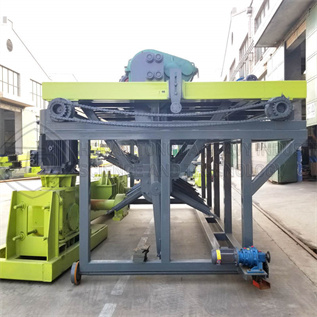

The intruduction of Groove Type Compost Turner:

The groove type compost turner are also called as rail type compost turner, which is usually used in the fermentation and

turning of the poultry manure, sludge and garbage, filter mud, sugar dregs cake, straw sawdust and other organic waste.

It is widely used in the fermentation and compost job of organic fertilizer plant, compound fertilizer plant, sludge and waste

treatment plant, garden spot, agaricus bisporus growing plant, etc,.

Features of Groove Type Compost Turner:

1.Automation control. Centralized control by the control cabinet, so that can realize the function of manual or automatic control.

2.Solid and durable. The teeth are durable and has the ability of breaking and mixing the compost materials.

3.The groove type compost turner is suitable for aerobic fermentation, and it can match with solar energy fermentation chamber, fermentation tank and transfer machine.

4.Compact structure and advanced technology. The use of some beneficial microorganisms can promote the rapid decomposition of organic wastes such as livestock manure.

Working Principle:

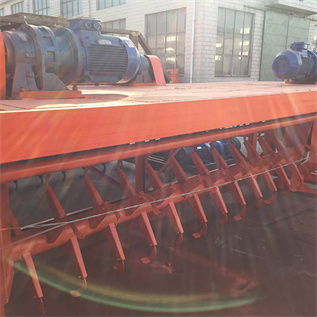

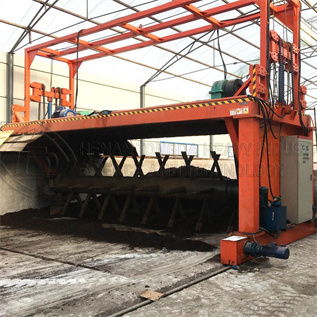

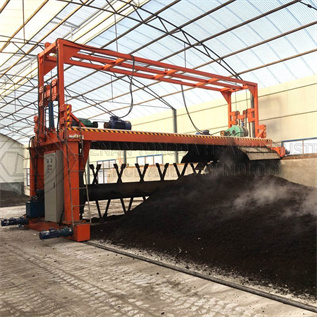

1. Groove type fermentation compost turner is an equipment widely used for organic fertilizer fermentation and compost. It consists of gear, lifting device, walking device and transfer vehicle (mainly used as multi-groove) etc. Motor directly drives the cycloidal reducer which drives the turning roller via the sprocket. The impellers with spiral shape can flip and stir the organic materials 0.7-1 meter away in the fermentation tank, which makes an evenly materials-turning, well air-contact, and fast-speed and short-period fermentation.

2. The composting and turning process of fermentation materials can be controlled automatically. By the action of vertical and horizontal walking devices, the materials are flipped continuously and progressively. After being thrown up to the highest point, materials fall down to the fermentation tank again. This is a continuous aerobic fermentation progress.

3. Our groove type hydraulic compost turner has almost the same working principle with non-hydraulic compost turner. Customers can choose whichever they like at will.
