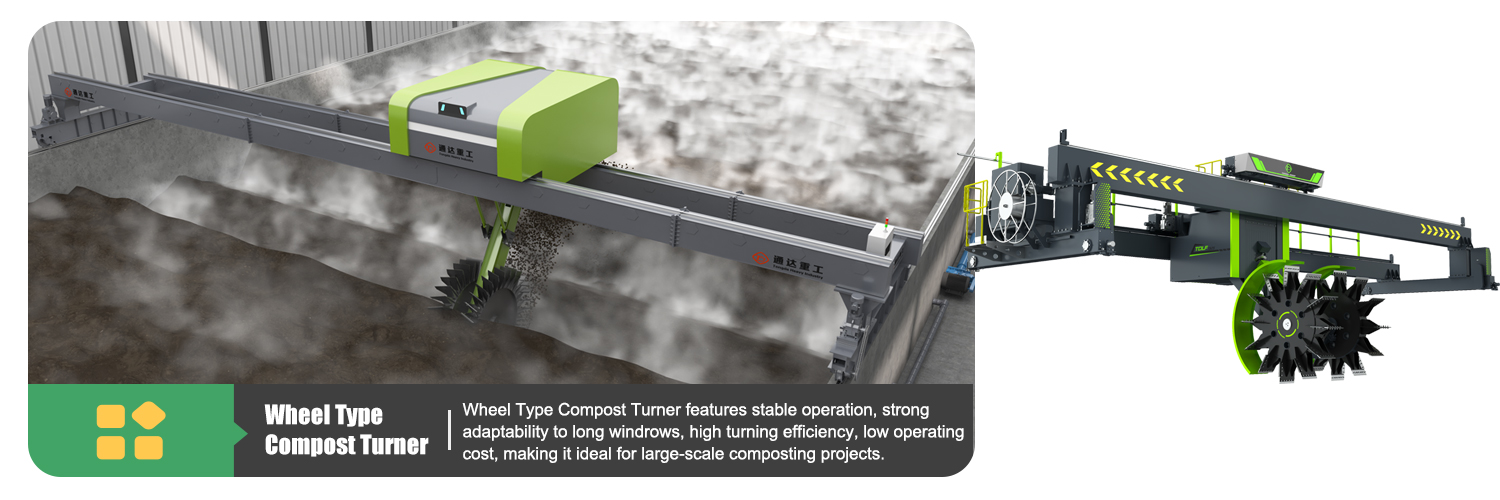

Wheel Type Compost Turner

Production Capacity: 10-20t/h

Matching Power: 45kw

Applicable Materials: Large span and high depth of livestock manure, sludge and garbage, filter mud from sugar mill, worse slag cake etc.

Product Introduction: Product introduction1. Wheel type compost turner is the patent product of our company.2. It is suitable for the fermentation with large span and high depth of livestock manure, sludge and garbage, filter mud from sugar mill, worse slag cake and straw saw

Product Description

 Product introduction

1. Wheel type compost turner is the patent product of our company.

2. It is suitable for the fermentation with large span and high depth of livestock manure, sludge and garbage, filter mud from sugar mill, worse slag cake and straw sawdust and other organic waste.

3. The machine is also widely used in organic fertilizer plant, compound fertilizer plant, sludge and garbage plant, horticultural farm and bisporus plant for fermentation and the removal of water.



Performance characteristics

1. Large turning depth: The depth can be 1.5-3 meters.

2. Large turning span: The largest width can be 30 meters.

3. Low energy consumption: Adopt unique energy efficient transmission mechanism, and the energy consumption of the same operating volume is 70% lower than that of the traditional turning equipment.

4. Flexible turning: The turning speed is in symmetry, and under the displacement of the governor shift trolley, there is no dead angle.

5. High automation: It is equipped with fully automated electrical control system, when the turner is working without the need for an operator.

Working principle

1. The advanced fermentation process adopts microbial aerobic fermentation. The compost turner produced by our factory is designed according to the principle of aerobic fermentation technology, so that the fermentation bacteria has a space to fully exert its functions. If the pile is too high or uses bucket machinery, trough fermentation, etc., an anaerobic state will be formed in the pile, so that the function of the fermenting bacteria cannot be fully exerted, which affects the quality of the fertilizer and its production cycle.

2. The compost turner is more suitable for the action mechanism and process requirements of microbial fermentation materials, and can effectively mix viscous materials with microbial preparations and straw powder. Created a better aerobic environment for material fermentation. Under the loose material properties, the material deodorizes in 7-12 hours, heats up in one day, starts to dry in three days, and becomes fat in five to seven days. It is not only faster than deep tank fermentation, but also effectively prevents hydrogen sulfide during fermentation. The production of harmful and malodorous gases such as amine gas and antimony, which meets environmental protection requirements, can produce good bio-organic fertilizer.

Product Parameter



Model

Main Motor Power(kw)

Moving Motor Power(kw)

Trolley Motor Power(kw)

Turning Width(mm)

Turning Depth(mm)

TDLPFD-20000

45

5.5*2

2.2*4

20

1.5-2

TDLPFD-20000

45

5.5*2

2.2*4

22

1.5-2
